Specification

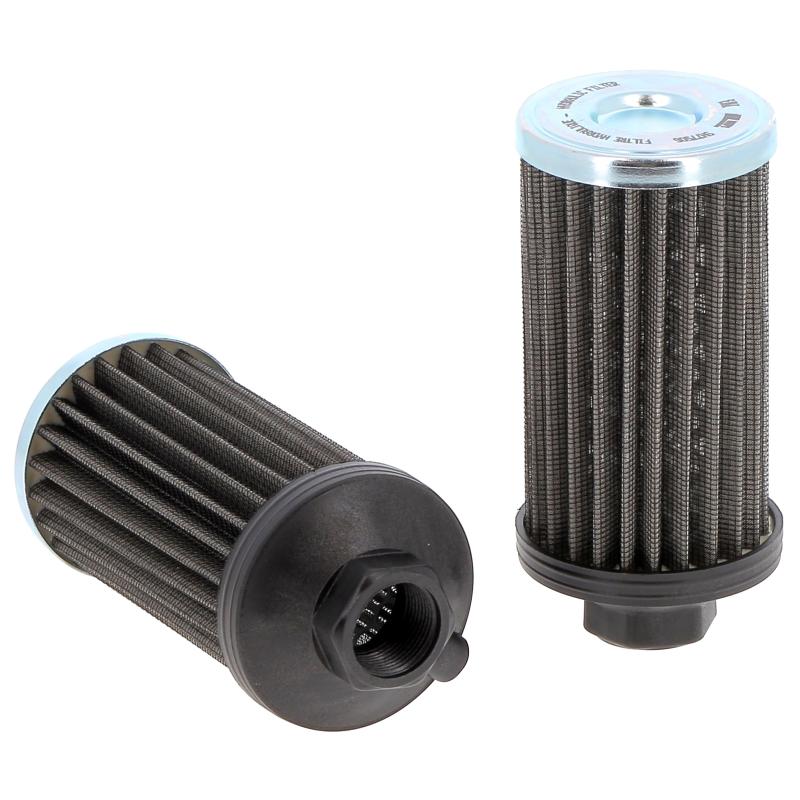

StyleSuction Strainer
Efficiency 1250µ
Outer Diameter 73.0 mm
Length 148.0 mm
Thread3/4" BSP
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 1 BAR
Temperature Range -30 - +100°C

Approved Product

Find out more
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri STR070-3SG1M250

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
250µ
Efficiency 2
Style Suction Strainer
Outer Diameter 73.0 mm
Inner Diameter
Length 148.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
