Argo-Hytos S3.0508-50 Replaces the Argo-Hytos S3050850

S3050850
S3050850
Representative product image Product image feedback

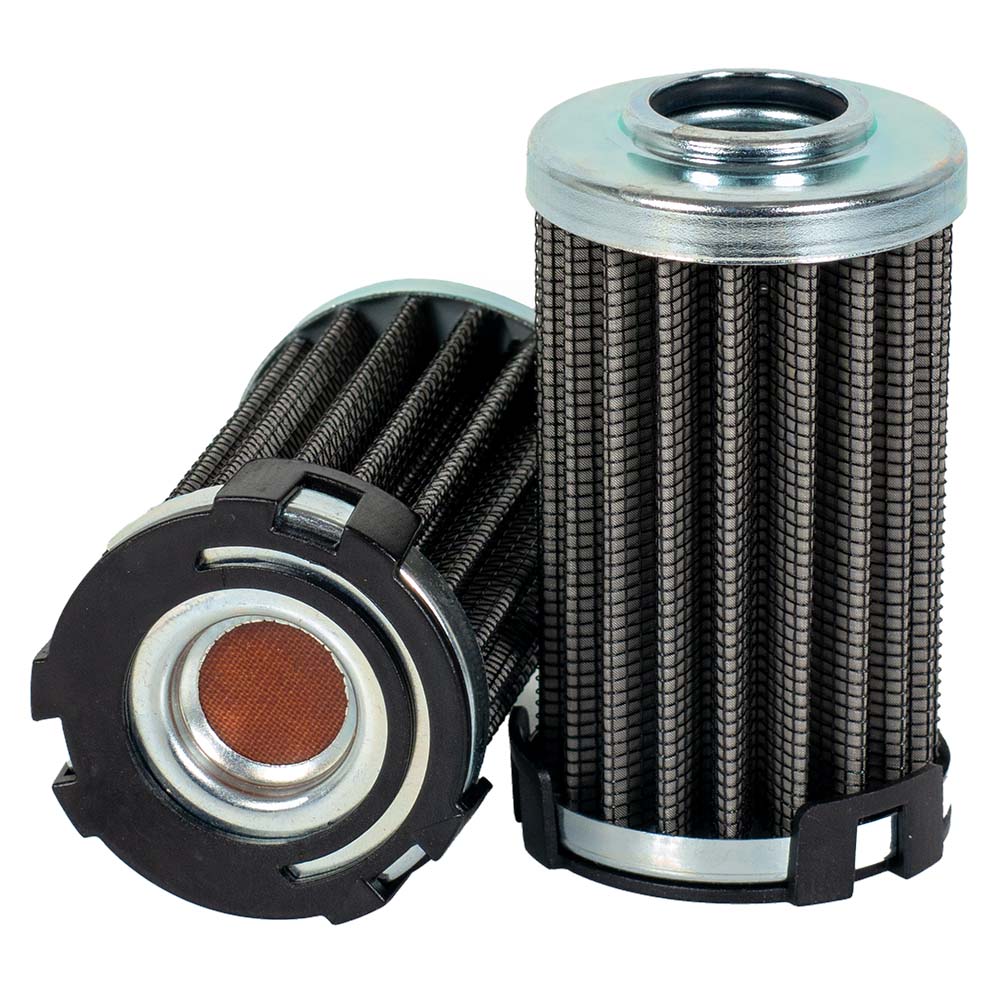

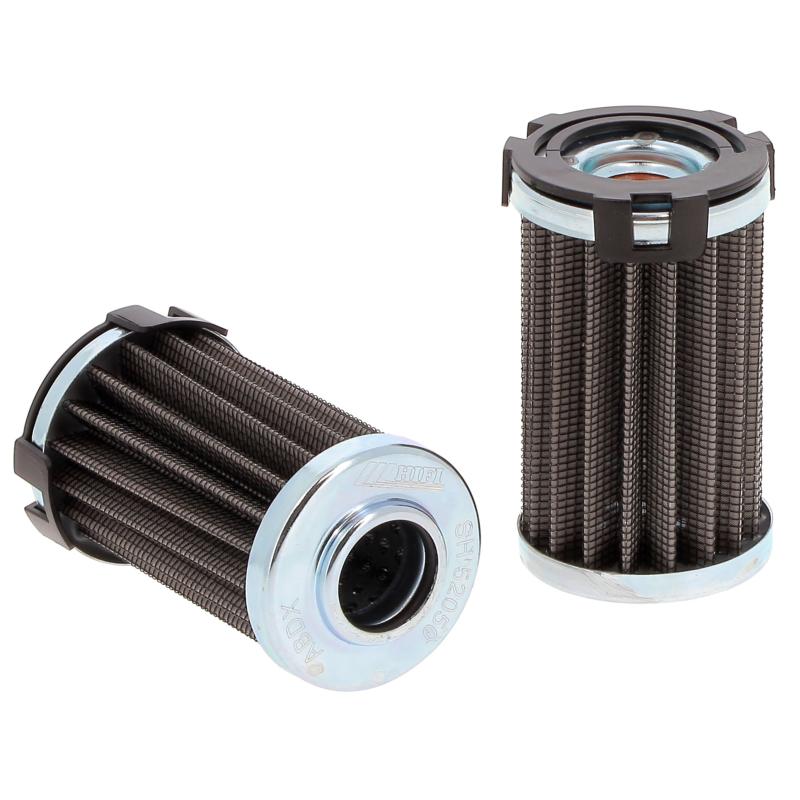

Argo-Hytos S3.0508-50 Sieve Element

Brand: Argo-Hytos
Price Match
€73,95
0.1 kg
Germany
8421.99.90
0.11 kg
0.0002 m³
Italy
8421.99.90
0.1 kg
0.0002 m³
France
8421.99.90
0.11 kg
0.0002 m³
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Argo-Hytos S3.0508-50 Sieve Element.

Specification

StyleSieve Element

Description

Genuine Argo-Hytos S3.0508-50 Sieve Element.

Default Brand Logo

Argo-Hytos Product

Genuine Argo-Hytos S3.0508-50

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Return Filter

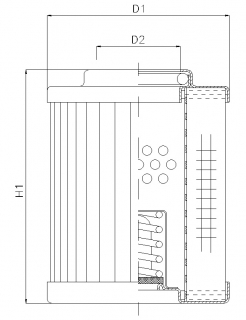

Outer Diameter 45.5 mm
Inner Diameter 20.5 mm
Length 79.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.5 BAR
Collapse Pressure 8 BAR
Seal Nitrile
Temperature Range -30 - +100°C
