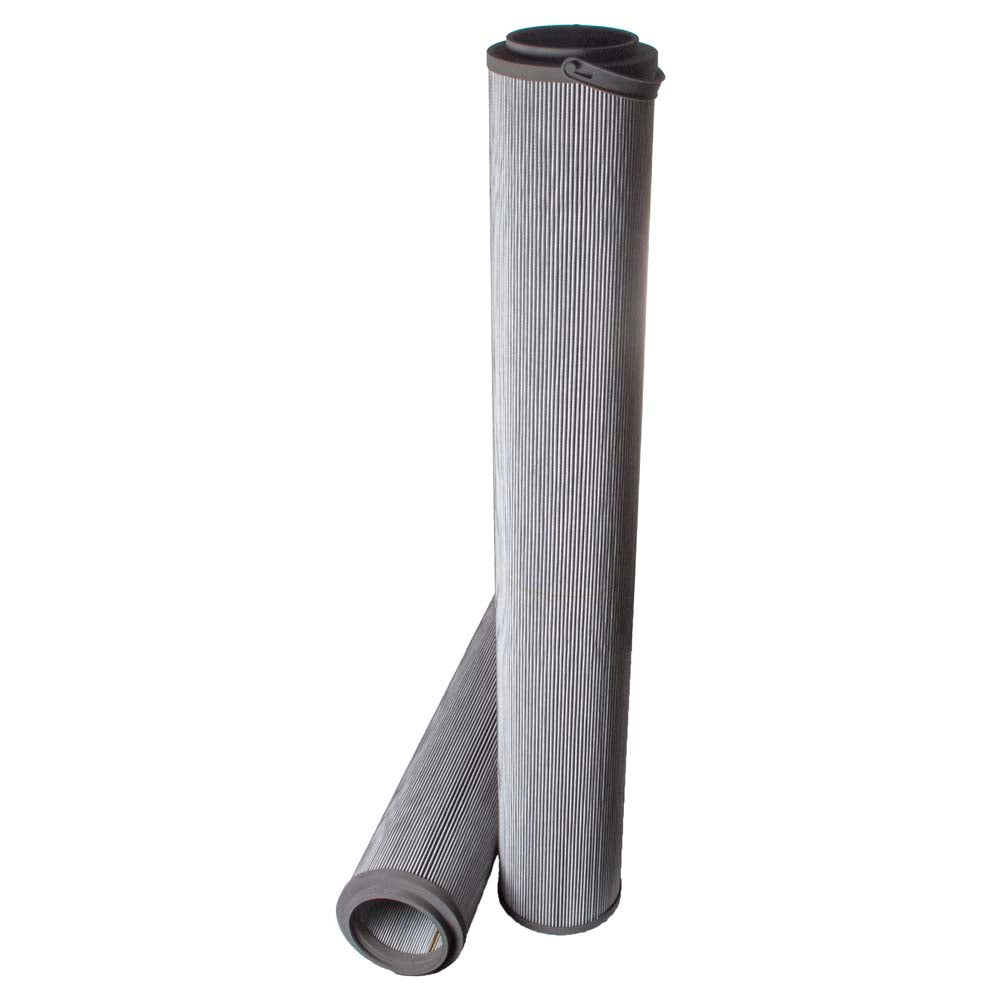

MICROFIT MFHC60134 Replaces the Hy-Pro HP8304L39-6MB

MICROFIT MFHC60134
Representative product image Product image feedback

MICROFIT® UltraGen III MFHC60134 Replaces the Hy-Pro HP8304L39-6MB

MFHC60134
MICROFIT
Hy-Pro HP8304L39-6MB
Description

The MICROFIT® UltraGen III MFHC60134 is the MICROFIT® approved replacement to the Hy-Pro HP8304L39-6MB. Engineered and manufactured in Great Britain the MFHC60134

Brand: MICROFIT
Price Matched
€490,95
3.46 kg
8421.99.90
United Kingdom
1.57 kg
8421.99.90
Italy
3.06 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60134 is the MICROFIT® approved replacement to the Hy-Pro HP8304L39-6MB. Engineered and manufactured in Great Britain the MFHC60134

Specification

StyleCoreless Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 927.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP8304L39-6MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Coreless Filter
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 927.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
