Specification

StyleHYDRAULIC FILTER, SPIN-ON DURAMAX

Description

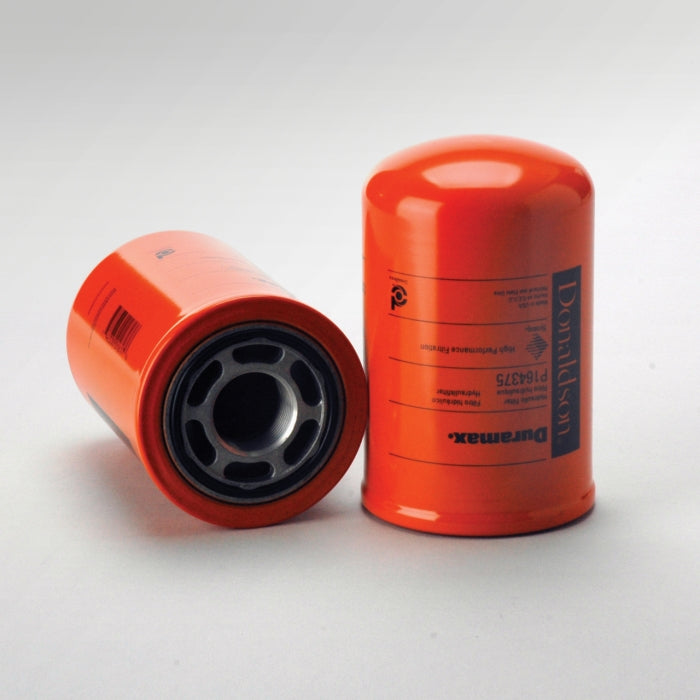

Genuine Donaldson P164375 Hydraulic Filter, Spin-On Duramax combines the convenience of a spin-on filter with the robust durability of Donaldson’s Duramax line. It offers high-efficiency filtration, effectively removing contaminants while withstanding high-pressure environments.

Its spin-on design simplifies maintenance, allowing for quick and easy filter changes. Built for heavy-duty applications, this filter provides reliable performance in demanding hydraulic systems, helping to extend equipment life and reduce downtime.

Default Brand Logo

Same Fit-Form & Function

As the Genuine Fairey Arlon CG46CC16

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
15µ @ β200
Efficiency 2 17µ @ β1000
Style Spin-On Filter
Outer Diameter 95.0 mm
Inner Diameter
Length 154.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1 3/8"-12 UNF 2B
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 34.5 BAR
Seal Nitrile
Temperature Range -30 - +100°C
