Summary

MicroFit MFHR50049 Alternative to the Parker 940015Q

940015Q
940015Q
Datasheet preview

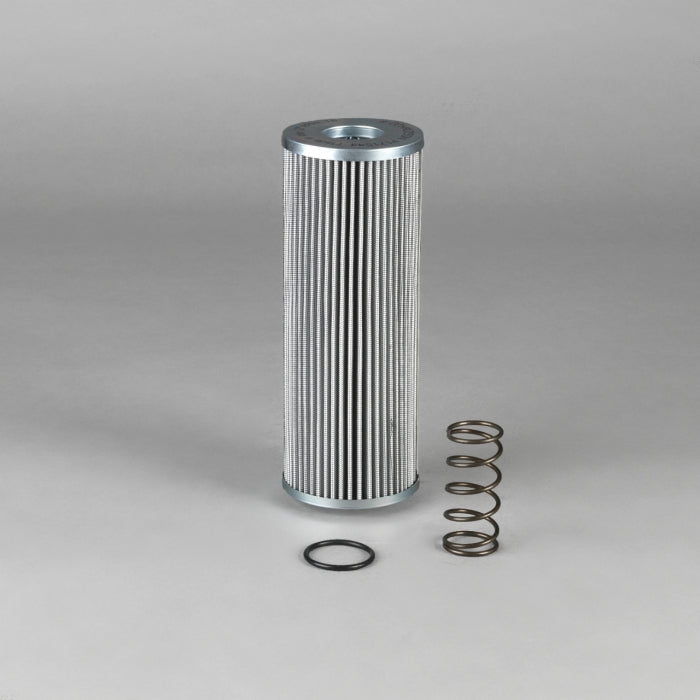

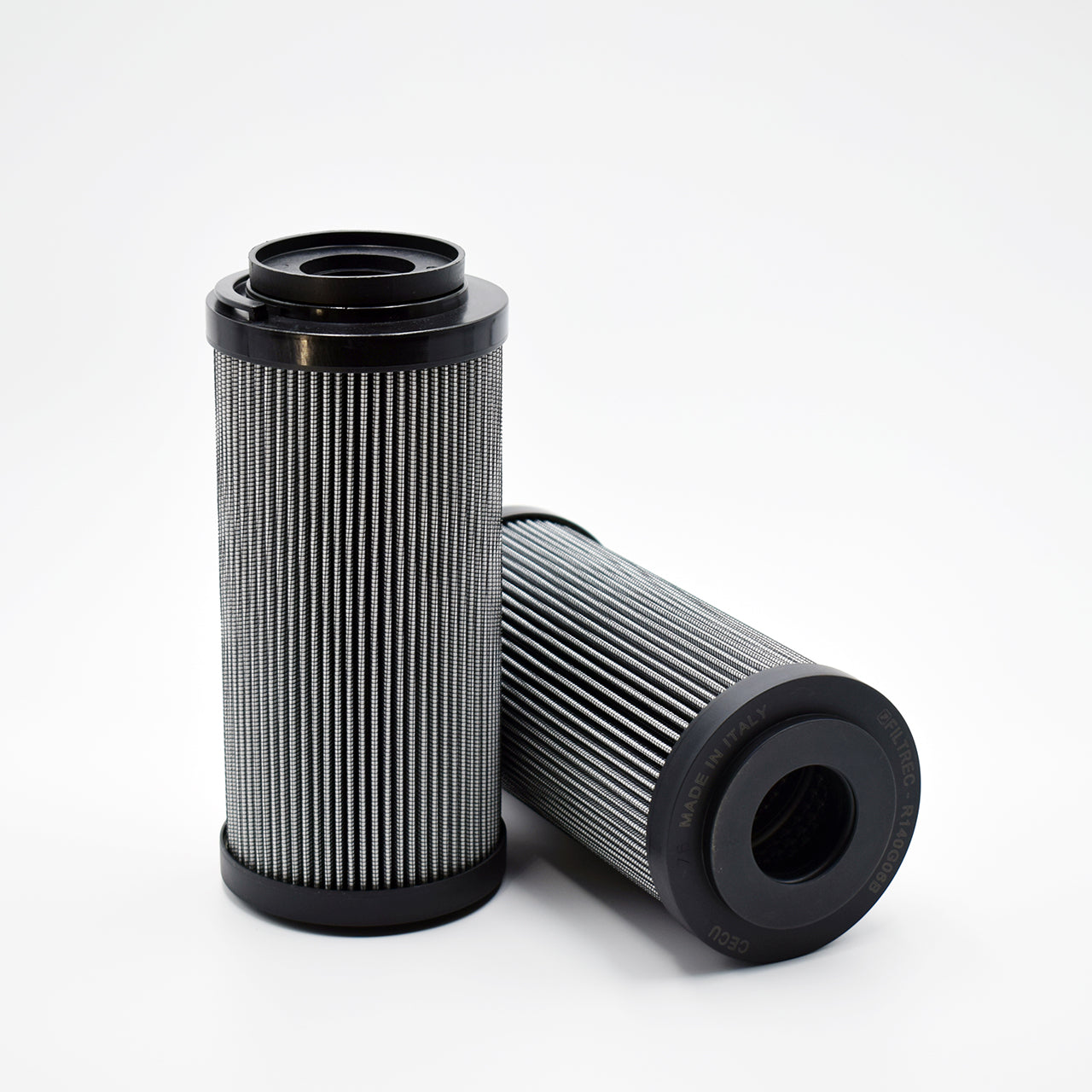

Representative product image Product image feedback

MicroFit® UltraGen III MFHR50049 Return Filter | Alternative to the Parker 940015Q

Brand: MicroFit
Price Match
€44,95
1.59 kg
0.0025 m³
231 pcs
United Kingdom
8421.99.90
0.95 kg
0.0034 m³
231 pcs
Italy
8421.29.80.90
0.72 kg
0.0029 m³
231 pcs
Italy
8421.99.90
0.8 kg
0.0035 m³
231 pcs
France
8421.29.80
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50049 is the MICROFIT® approved replacement to the Parker 940015Q. Engineered and manufactured in Great Britain the MFHR50049

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 256.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

The MICROFIT® UltraGen III MFHR50049 is the MICROFIT® approved replacement to the Parker 940015Q. Engineered and manufactured in Great Britain the MFHR50049

Cross References

To the genuine Parker 940015Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 256.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
